What’s included:

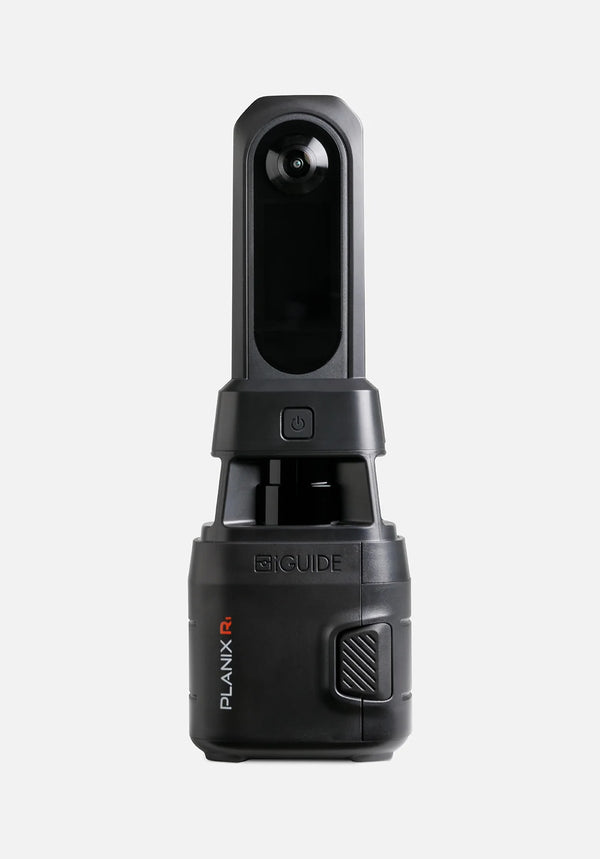

• PLANIX R1 Camera System with Ricoh THETA X
• System Shield
• Battery with battery cover
• Battery charger
• USB power supply
• 6'(1.8m) USB-C cable
• Soft carrying case with shoulder strap
• Protective neoprene sleeve

Customer provides:

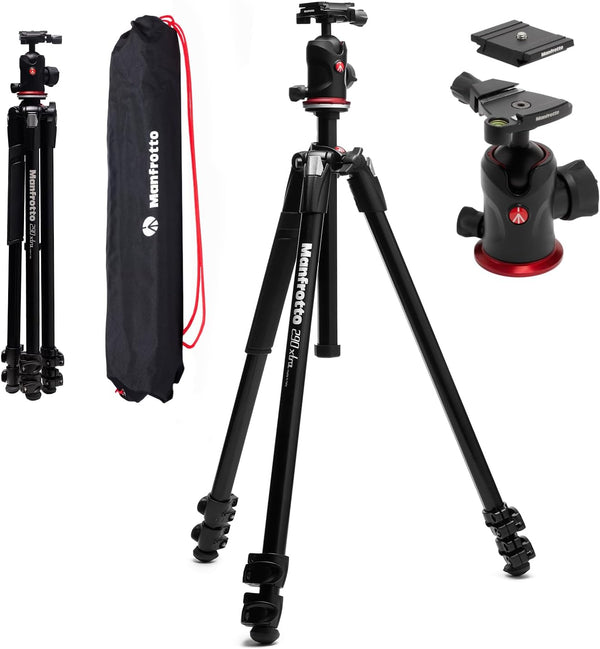

• (depending on selected package, a tripod and additional battery may or may not be included)

• Android or iOS smartphone or tablet with Wi-Fi connectivity

Performance

Measurement Range: Up to 40m (approx. 130′)
Typical Measurement Uncertainty: +/- 25mm up to max range (raw point cloud), typically +/- 10mm from camera to wall (minimum 60cm wall length)
Laser Scanner Field of View: 360°
360° Camera: Ricoh THETA X
Resolution: 11,008 x 5,504 (60MP)

Connectivity and System Control

Wi-Fi: Wi-Fi 802.11 2.4GHz/5GHz Access Point
Survey App: iGUIDE PLANIX App

Electrical

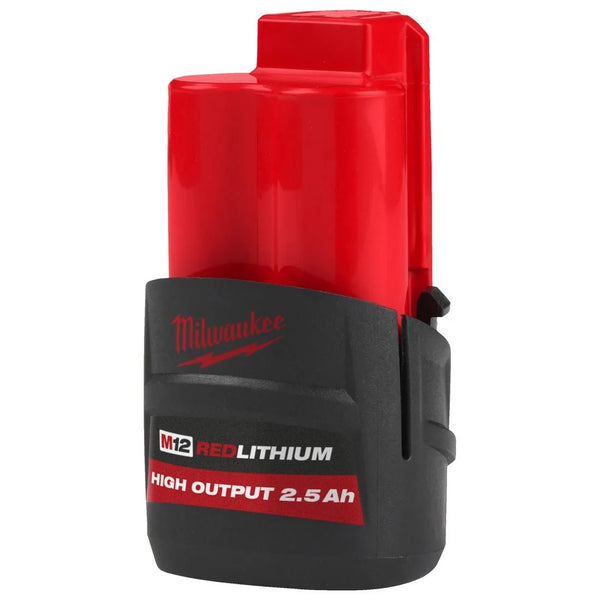

System Battery: 12V Li-Ion battery, user-replaceable
System Power Supply: Input: USB-C 100-240VAC, 50-60Hz, 1.0A; Output: 12VDC, 1.8A
System Battery Performance: Up to 6 hours of typical operation

Mechanical

System Unit Weight (without cover): 725g (1.76lb)
System Unit Weight (with cover): 986g (2.2lb)
System Unit Dimensions (without cover): W: 9.90cm (3.90") x D: 7.75 cm (3.05") x H: 28.89cm (11.375")
System Unit Dimensions (with cover): W: 9.90cm (3.90") x D: 7.75 cm (3.05") x H: 29.53cm (11.625")
Shipping weight (with carrying case, without packaging): 1,996g (4.4lb)
Carrying Case Dimensions: W: 57.15cm (22.5") x D: 15.24cm (6") x H: 13.97cm (5.5")
Tripod Mounting Thread: 1/4-20

Environmental

Operating Temperature Range: 5-40°C (41-104°F)
Storage Temperature Range: -20-60°C (-4-140°F)
Relative Humidity: 0-90%
Maximum Altitude (operating): 2,000 m

This product has been tested and was found to comply with the following standards:

• FCC CFR 47, PART 15, SUBPART B, Class B – Unintentional Radiators.
• ISED Canada ICES-003, Issue 7 – Innovation, Science and Economic Development Canada, Verification Authorization – Information Technology Equipment (Including Digital Apparatus)
• CISPR 32:2015+COR1:2016/ EN55032:2015+A11:2020, Class B Multimedia Equipment – International Electrotechnical Commission (International Special Committee on Radio Interference). Electromagnetic Compatibility of Multimedia Equipment – Emission Requirements.
• CISPR 32:2012 / EN 55032:2012+AC:2013 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment.
• CISPR 35: 2016/ EN 55035:2017– Electromagnetic Compatibility of Multimedia equipment – Immunity Requirements
• ETSI EN301 489-1 V2.2.2 (2019-11) – European Telecommunications Standards Institute (ETSI) ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential requirements of article 6 of Directive 2014/30/EU
• ETSI EN 301 489-17 V3.2.2 (2019-12) – ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for Broadband Data Transmission Systems; Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU
• IEC/EN 60825-1:2014 – Class 1 laser product.
• CSA-C22.2 NO. 61010-1-12 – Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements – Third Edition; Update No. 2: April 2016
• UL 61010-1 – Electrical Equipment for Measurement, Control, and Laboratory Use; Part 1: General Requirements – Third Edition; Including Revisions through July 19, 2019
• IEC 61010-1 – Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements – Edition 3.1; Consolidated Reprint

LASER SAFETY

This product includes a laser scanner which is a Class 1 laser product and complies with IEC 60825-1: 2014 and 21 CFR Subchapter J Parts 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

FCC WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Any product modifications not expressly approved by Planitar could void the user’s authority to operate PLANIX equipment under FCC rules.

INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT (ISED) CANADA

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

DECLARATION OF CONFORMITY – SIMPLIFIED

This product complies with the essential requirements and provisions of RE Directive 2014/53/EU.

WARNING: Do not use the 5 GHz band (W52) of wireless LAN outdoors within countries belonging to the European Union. The outdoor use of the W52 is prohibited by law in many of these countries. Use the 2.4GHz band for outdoors.

USER INFORMATION ON ELECTRICAL & ELECTRONIC EQUIPMENT

Our products contain high quality components and are designed to facilitate recycling. Our products or product packaging are marked with the symbol below.

The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions, you ensure that this product is treated correctly and help to reduce the potential impacts on the environment and human health, which could otherwise result from inappropriate handling. Recycling of products helps to conserve natural resources and protect the environment.

For additional disposal information, contact local authorities in charge of E-waste management or your Planitar authorized distributor. For product take-back programs, contact Planitar Inc. at www.planitar.com
